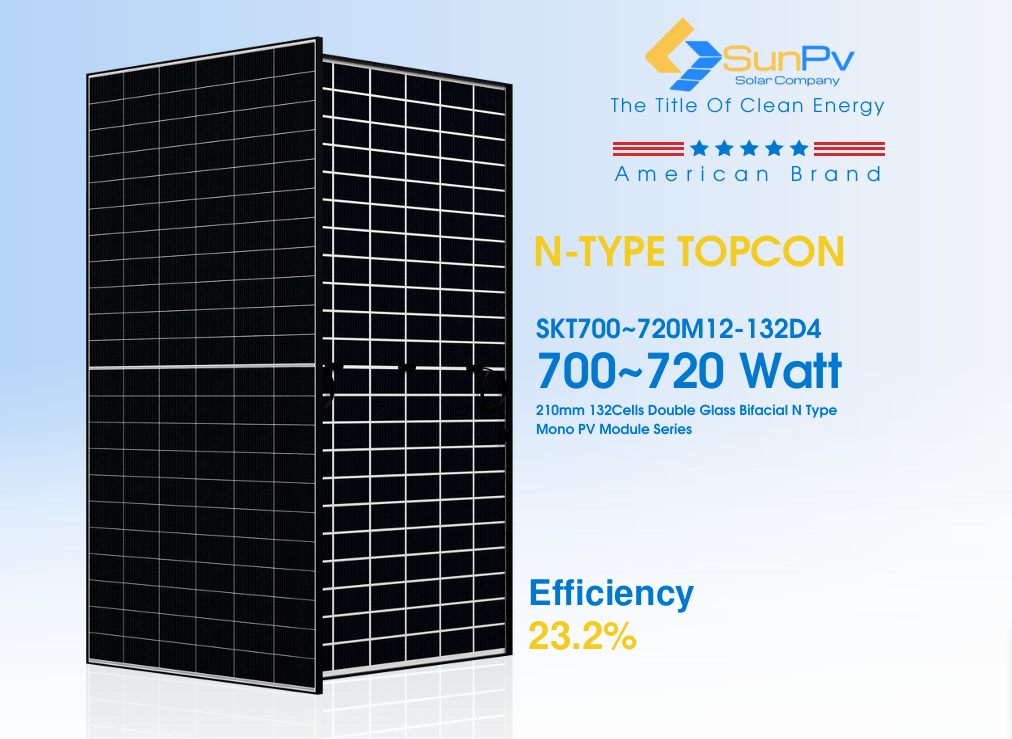

720W 210mm 132Cells 20BB
Double Glass Bifacial
MonoCrystalline Half Cell PV Module Series
Max Module Efficiency 23.2%
Power Warranty: 12 Years of 97% Output Power, 30 Years of 88% Output Power
| Parameter | STC |
|---|---|
| Maximum Power (Pmax) | 720 Wp |
| Open Circuit Voltage - Voc(V) | 48.7 |
| Short- Circuit Current - Isc(A) | 18.69 |
| Voltage at Pmax - Vmp(V) | 40.8 |
| Current at Pmax - Imp(A) | 17.67 |
| Module Efficiency - ηm(%) | 23.2% |
Maximum System Voltage (V): 1500Vdc (IEC / UL)
External Dimensions: 2384x1303x33mm
Weight: 37.8kg
Solar Cells: MONO CRYSTALLINE 210mm (2x66pcs)
