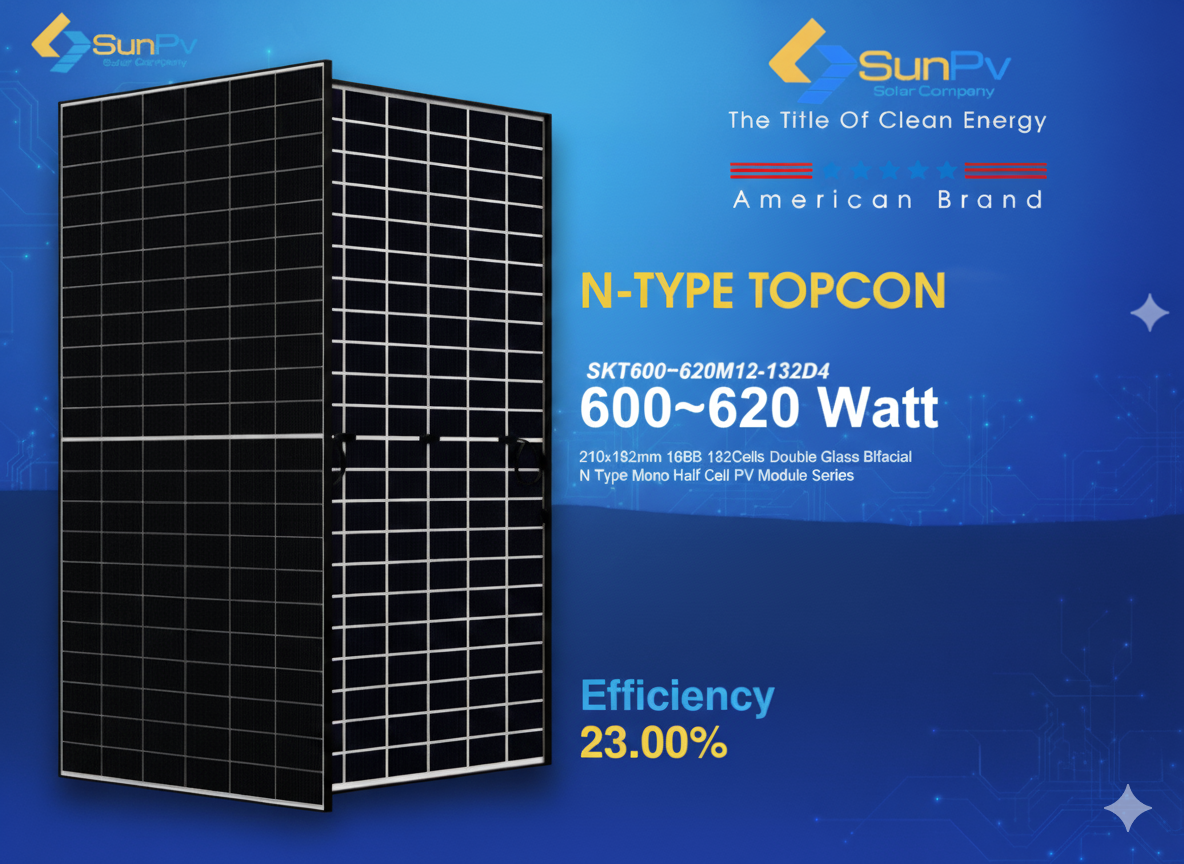

620W 182 × 105mm 132Cells 16BB
Double Glass Bifacial
N-TYPE MonoHalf Cell PV Module Series
Max Module Efficiency 23.00%
Power Warranty: 12 Years of 97% Output Power, 30 Years of 88% Output Power
| Parameter | STC |
|---|---|
| Maximum Power (Pmax) | 620 Wp |
| Open Circuit Voltage - Voc(V) | 49.10 |
| Short- Circuit Current - Isc(A) | 16.07 |
| Voltage at Pmax - Vmp(V) | 40.76 |
| Current at Pmax - Imp(A) | 15.22 |
| Module Efficiency - ηm(%) | 23.00% |
| Maximum System Voltage(V) | 1500Vdc (IEC / UL) |
| External Dimensions | 2382x1134x30mm |
| Weight | 32.4kg |
| Solar Cells | N-TYPE 16BB 105×182mm (2x66pcs) |
